Height

Material

Nominal dimension

Thickness
remove filter

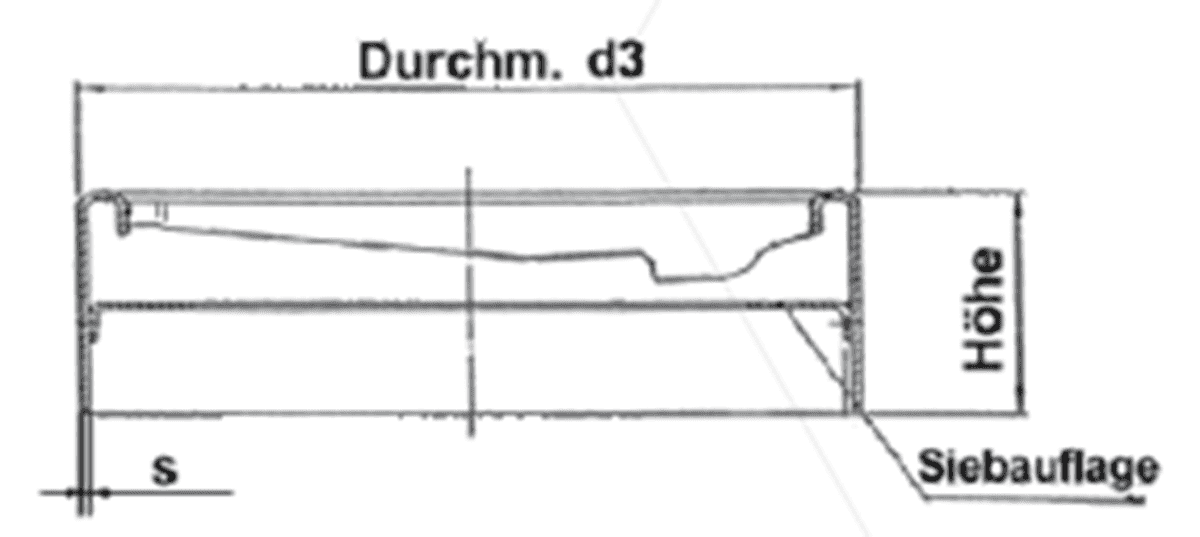

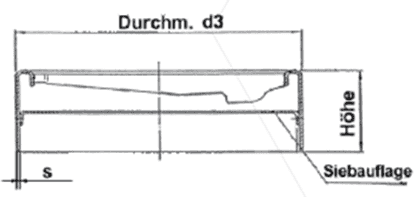

Filler necks

  filler neck cap with bayonet
nominal
 d1
d2
d3
g
l
30
30
38
45
29
37
35
35
42
50
34
41
40
40
49
58
39
47,5
50
50
56
65
47
55
60
60
70
80
59
68,50
80
80
92
105
79
90
100
100
 113
125
99
110


item-no. name type nominal height thickness material remark
BL16100-00-002 d 100/20 Bayonet 100mm 20mm 2mm Steel Steel
BL16100-00-005 D 100/20 ALU Bayonet 100mm 20mm 1,5mm Aluminium AlMg3 without screen support
BL16100-00-502 d 100/20 scsp SST Bayonet 100mm 20mm 1,2mm Stainless steel 1.4301 with screen support
BL16100-00-019 d 100/50 Bayonet 100mm 50mm 2mm Steel without screen support
BL16100-00-519 D 100/50 ALU Bayonet 100mm 50mm 1,5mm Aluminium AlMg3 without screen support
BL16100-00-004 d 100/50 scsp Bayonet 100mm 50mm 2mm Steel Steel, Comment
BL16100-00-501 d 100/50 SST Bayonet 100mm 50mm 1,5mm Stainless steel 1.4301 without screen support, lead time on request, MOQ 300 pcs
BL16030-00-001 D 30/18 Bayonet 30mm 18mm 0,75mm Steel without screen support
BL16040-00-013 D 40/15 Bayonet 40mm 15mm 1mm Steel ohne Siebauflage, DIN 73400 Form "B" - Auslauf
BL16040-00-060 D 40/20 ALU Bayonet 40mm 20mm 1mm Aluminium AlMg3 without screen support
BL16040-00-026 d 40/20 scsp Bayonet 40mm 20mm 1mm Steel Steel
BL16040-00-585 D 40/20 SST 1.4301 shape A Bayonet 40mm 20mm 1mm Stainless steel 1.4301 Steel, Comment
BL16040-00-014 D 40/20 w. hole Bayonet 40mm 20mm 1mm Steel without screen support
BL16040-00-027 D 40/30 Bayonet 40mm 30mm 1mm Steel without screen support
BL16040-00-022 D 40/35 Bayonet 40mm 35mm 1mm Steel ohne Siebauflage, DIN 73400 Form "B", Auslauf
BL16040-00-084 D 40/40 Bayonet 40mm 30mm 1mm Steel without screen support
BL16040-00-071 d 40/40 scsp Bayonet 40mm 30mm 1mm Steel Steel
BL16040-00-584 D 40/40 SST 1.4301 shape A Bayonet 40mm 30mm 1mm Stainless steel 1.4301 ohne Siebauflage, DIN 73400 Form "A", Auslauf
BL16050-00-016 D 50/20 Bayonet 50mm 20mm 1mm Steel without screen support
BL16050-00-025 d 50/20 scsp Bayonet 50mm 20mm 1mm Steel Steel
BL16050-00-017 D 50/50 Bayonet 50mm 50mm Steel without screen support
BL16060-00-001 D 60/20 Bayonet 60mm 20mm 1,25mm Steel without screen support
BL16060-00-506 d 60/20 ALU shape "A" Bayonet 60mm 20mm 1mm Aluminium AlMg3 without screen support, discontinued
BL16060-00-006 d 60/20 scsp Bayonet 60mm 20mm 1,25mm Steel Steel
BL16060-00-012 D 60/30 Bayonet 60mm 30mm 1,25mm Steel without screen support
BL16060-00-022 D 60/30 SST Bayonet 60mm 30mm 1mm Stainless steel 1.4301 without screen support
BL16060-00-026 d 60/40 scsp Bayonet 60mm 30mm 1mm Steel Steel, Comment
BL16060-00-010 D 60/50 (PLAT-A010) Bayonet 60mm 50mm 1mm Steel without screen support
BL16060-00-510 D 60/50 ALU Bayonet 80mm 50mm 1mm Aluminium AlMg3 without screen support
BL16060-00-018 d 60/50 scsp Bayonet 60mm 50mm 1mm Steel Steel
BL16060-00-505 d 60/50 scsp SST shape "A" Bayonet 60mm 50mm 1mm Stainless steel 1.4301 with screen support
BL16060-00-009 D 60/50 SST Bayonet 60mm 50mm 1mm Stainless steel 1.4301 without screen support
BL16080-00-007 D 80/20 Bayonet 80mm 20mm 1,25mm Steel without screen support
BL16080-00-003 d 80/20 scsp Bayonet 80mm 20mm 1,25mm Steel Steel
BL16080-00-503 d 80/20 scsp SST Bayonet 80mm 20mm 1,25mm Stainless steel 1.4301 with screen support
BL16080-00-010 D 80/25 Bayonet 80mm 25mm 1,25mm Steel without screen support
BL16080-00-008 D 80/30 Bayonet 80mm 30mm 1,25mm Steel without screen support
BL16080-00-028 D 80/30 ALU Bayonet 80mm 30mm 1,2mm Aluminium AlMg3 without screen support
BL16080-00-017 d 80/30 scsp Bayonet 80mm 30mm 1,25mm Steel Steel
BL16080-00-517 d 80/30 scsp AlMg3 Bayonet 80mm 30mm 1,2mm Aluminium AlMg3 with screen support, lead time on request, MOQ 300 pcs.
BL16080-00-027 d 80/30 SST Bayonet 80mm 30mm 1,25mm Stainless steel 1.4301 without screen support
BL16080-00-011 d 80/40 scsp Bayonet 80mm 30mm 1,25mm Steel Steel
BL16080-00-062 d 80/40 scsp Bayonet 80mm 30mm 1mm Steel Steel, Comment
BL16080-00-006 D 80/50 Bayonet 80mm 50mm 1,25mm Steel without screen support
BL16080-00-032 d 80/50 scsp Bayonet 80mm 50mm 1,25mm Steel Steel
BL16080-00-038 D 80/67 Bayonet 80mm 80mm 1,25mm Steel without screen support
BL16080-00-031 d 80/67 scsp Bayonet 80mm 80mm 1,25mm Steel Steel
BL16030-00-503 d30/40 (shape A) Bayonet 30mm 30mm 0,75mm Steel Steel, Comment
BL16040-00-061 D40/22.5 Bayonet 40mm 40mm 1mm Steel Steel, Comment
BL16080-00-501 D80/65 ALU Bayonet 80mm 65mm 1,2mm Aluminium AlMg3 without screen support
BL17045-00-002 RD45/40 Renkbayonet 45mm 30mm 1mm Steel without screen support
BL16060-28-001 screen support D60 60mm Steel screen support for D60 filler neck
BL16080-28-001 screen support D80 80mm Steel screen support for D80 filler neck
